EchoLink

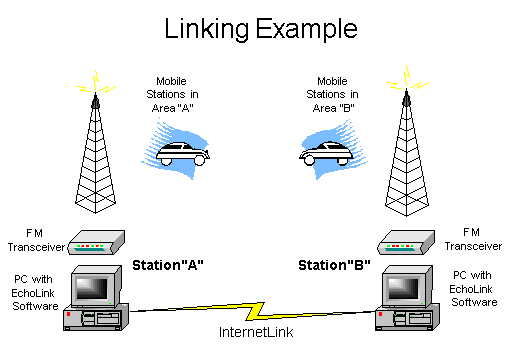

EchoLink software allows licensed Amateur Radio stations to communicate with one another over the Internet, using streaming-audio technology. The program allows worldwide connections to be made between stations, or from computer to station, greatly enhancing Amateur Radio's communications capabilities. There are more than 350,000 validated users worldwide – in 159 of the world's 193 nations – with about 6,000 online at any given time. To access our 444.975 MHz Repeater, use KØMSP-R EchoLink Node 8098. Please use your call and location with initial connection. Click the following link for a list of current logins. Note: Please leave at least a four second gap between "overs" to allow time for all links to reset.
EchoLink DTMF Functions
EchoLink can accept DTMF tone commands used to enable or disable the link or to connect or disconnect a station on the Internet. Each command consists of a sequence of digits (or the special keys *, #, and A through D). The table below lists each of the DTMF commands.
|
|
|
|
|
| Connects to a station on the Internet, based on its node number. |
|
|
| Connects to a station on the Internet, based on its callsign. |
|
|
| Selects an available node (of any type) at random, and tries to connect to it. |
|
|
| Selects an available link or repeater (-L or -R) at random, and tries to connect to it. |
|
|
| Selects a conference server at random, and tries to connect to it. |
|
|
| Selects an available single-user station at random, and tries to connect to it. |
|
|
| Selects an available node (of any type) at random from the Favorites List, and tries to connect to it. |
|
|
| Selects an available link or repeater (-L or -R) at random from the Favorites List, and tries to connect to it. |
|
|
| Selects a conference server at random from the Favorites List, and tries to connect to it. |
|
|
| Selects an available single-user station at random, and tries to connect to it. |
|
|
| Disconnects the station that is currently connected. If more than one station is connected, disconnects only the most-recently-connected station. |
|
|
| Disconnects all stations. |
|
|
| Re-connects to the station that most recently disconnected. |
|
|
| Announces the callsign of each station currently connected. |
|
|
| Plays a brief ID message. |
|
|
| Looks up a station by its callsign, and reads back its node number and status. |
|
|
| Looks up a station by its node number, and reads back its callsign and status. |
|
